CATV network signal levels calculator.
This application allows you to calculate signal levels along CATV network line.
Application features:
- You can enter up to 50 CATV components.
- Supported up to 3 frequency signal levels.

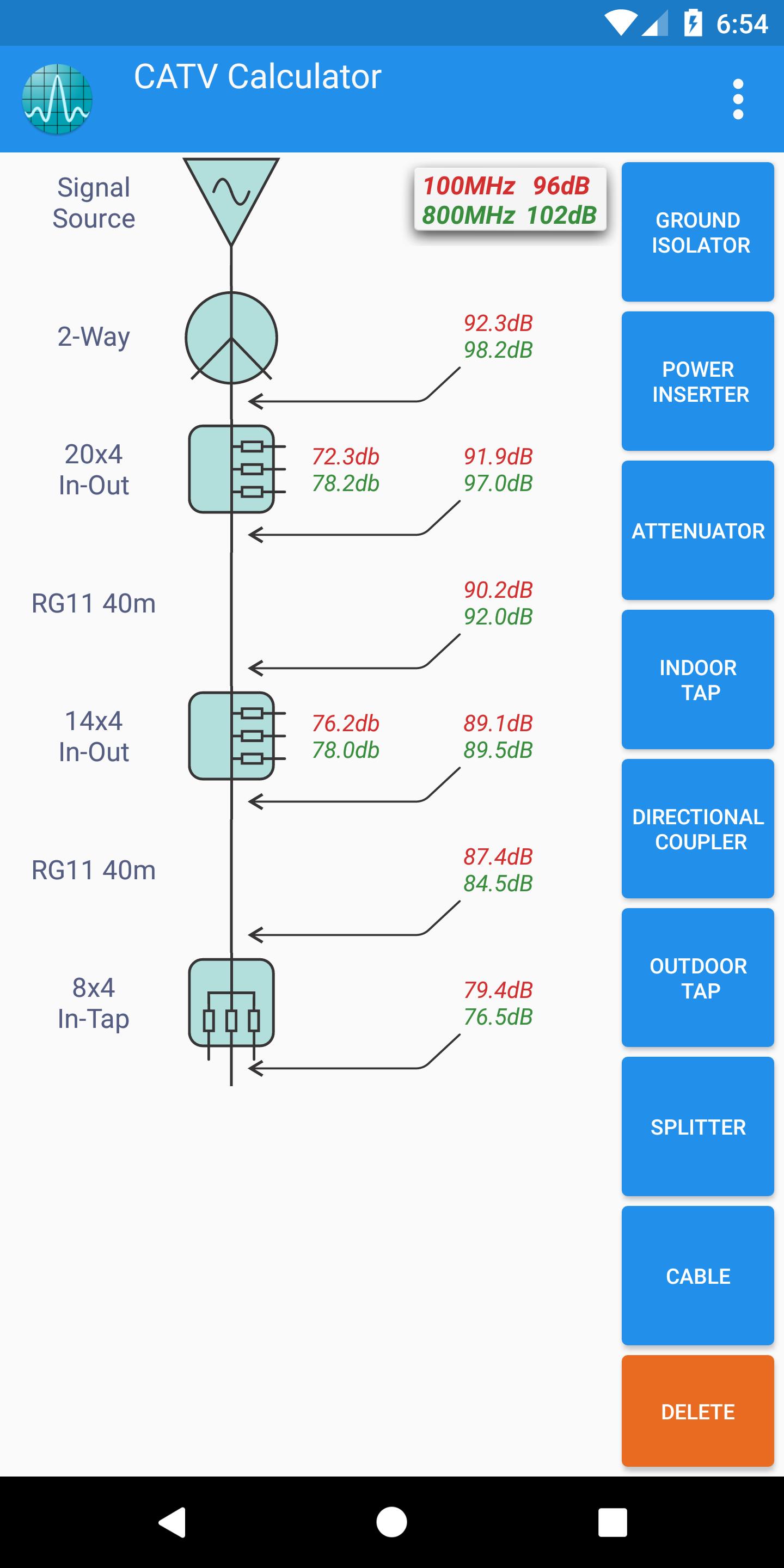

- Input and output are calculated for every schematic item.
- Saving and opening schematic files.

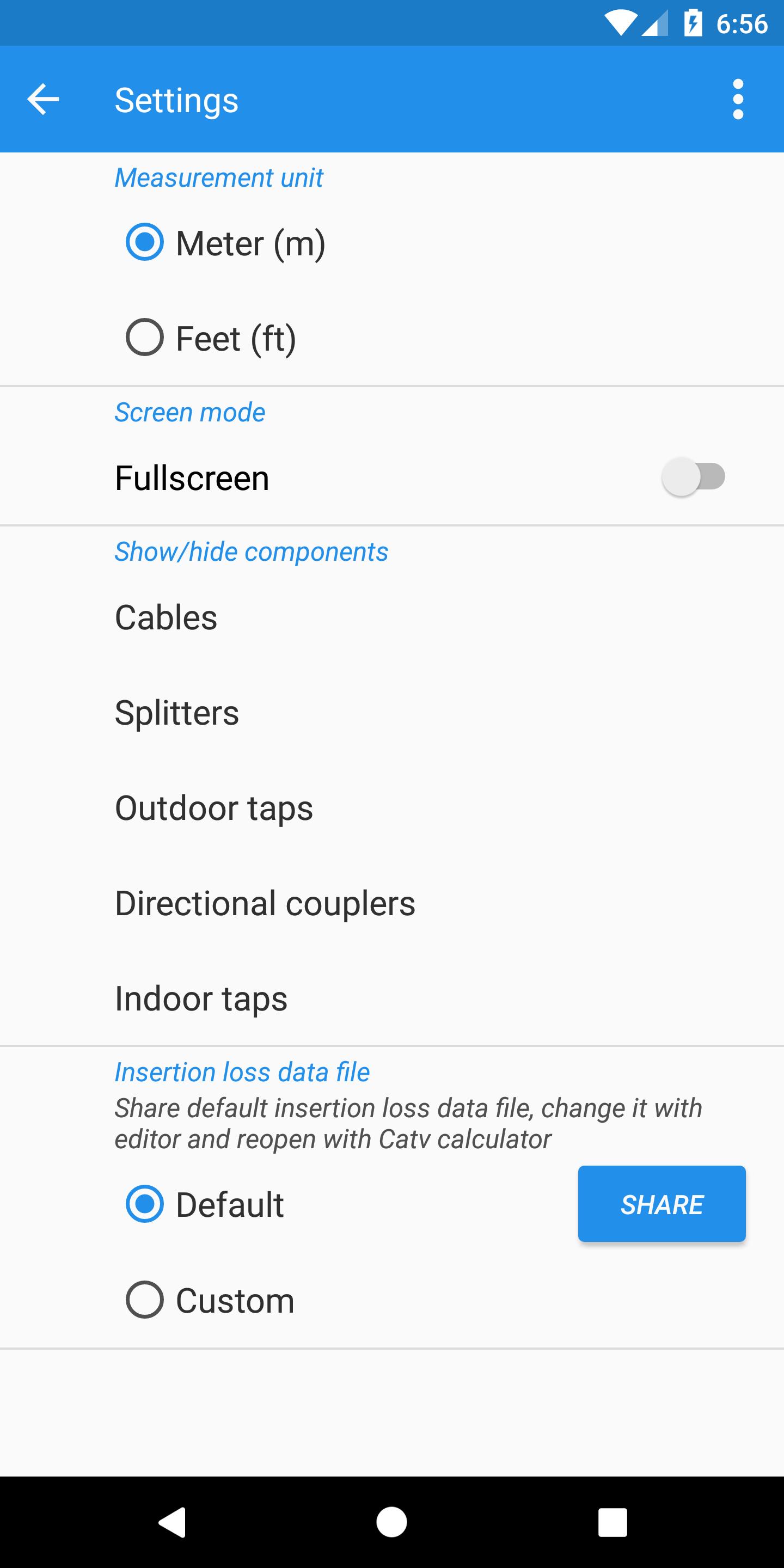

- Metric and Feet measurement units.
- Schematic Elements: Cable, Splitters, Outdoor Tap, Directional Coupler, Indoor Tap,
Multimedia Splitters, Attenuator, Power Inserter, Ground Isolator
- In_Out and In_Tap configuration supported
What's New in the Latest Version 5
Last updated on Apr 30, 2018 - no permission required
- quickly switch to one of the last three defined signals

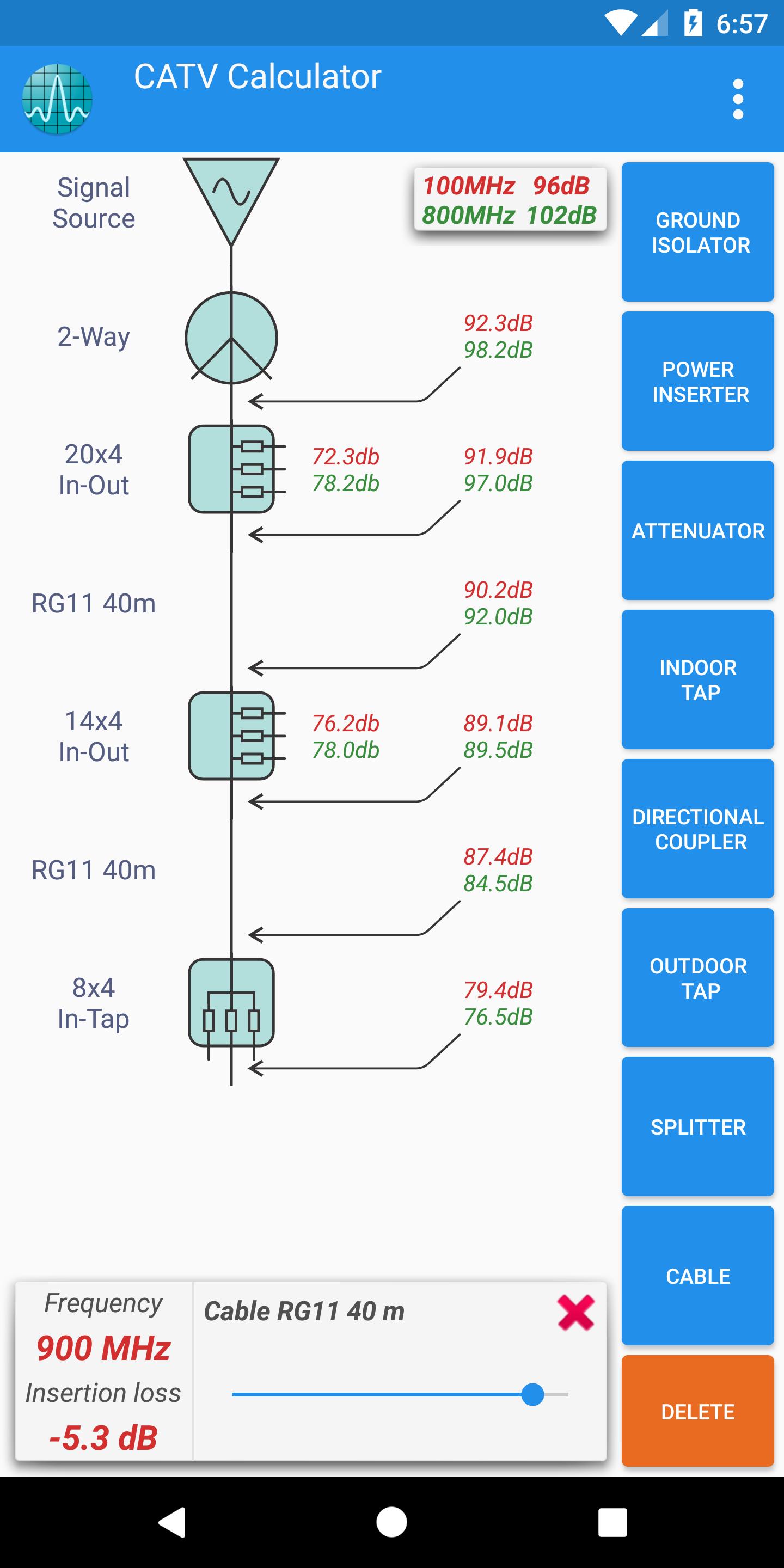

- component properties dialog show insertion loss for selected component
- UI redesign
